Shielded Cables |2 Core

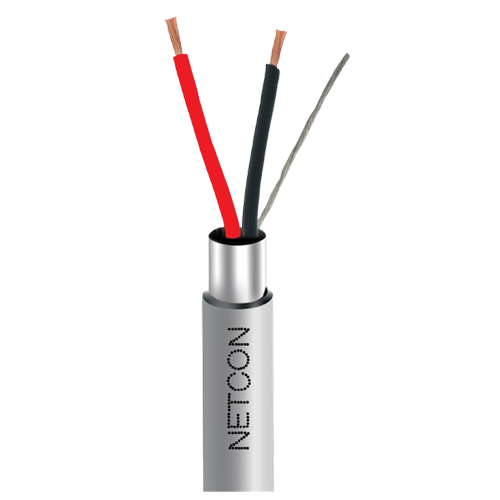

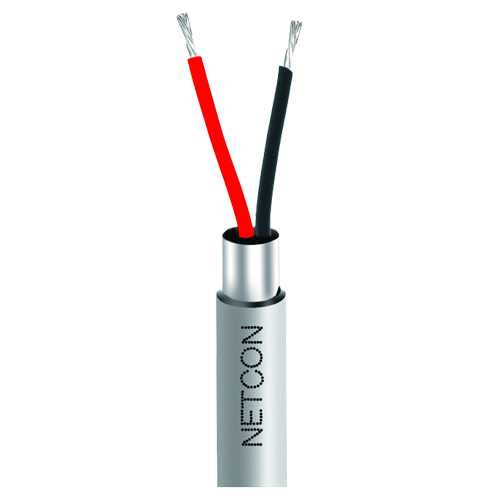

The 2 Core 18 AWG Shielded Cable consists of two flexible bare-copper conductors with polyolefin insulation, surrounded by an aluminum/polyester tape screen and a tinned-copper drain wire. The outer sheath is available in flame-retardant PVC, with an LSZH option. It is suitable for audio, control, instrumentation, Building Management Systems (BMS), and security systems.
| Name | Certificate |
|---|---|
| ROHS Certificate | View Certificate |
| IEC Certificate | View Certificate |
| CE Certificate | View Certificate |
| Test Report | View Certificate |
| PHYSICAL | |
|---|---|
| No of cores | 2 |
| Nom. Overall Diameter (mm) | 4.0 |
| Operating Temperature (ºC) | - 20 ~ 70 |
| Nom. Diameter Conductor (mm) | 1.2 |
| Drain Wire Size (AWG) | 7/0.203mm, TC |
| Min. screen Coverage | 113 % |
| Max. Bend Radius (Install) (mm) | 40 |
| Max. Recommended Pulling Tension (N) | 200 |
| Nom. Radial Thickness Sheath (mm) | 0.35 |
| Nominal Cable weight (kg/km) | 29.8 |
| Nom. Radial Thickness Insulation (mm) | 0.18 |
| STANDARDS | |
| STANDARDS | Flammability: Comply to IEC 60332-1, VW-1 / IEC 60228, IEC 60332 - 3 CAT A Comply to RoHS |
| ELECTRICAL | |
| Capacitance Conductor to other Conductors + Screen (pF/m) | 175 |
| No of cores | 2 |
| Max. DC Resistance Screen (Ohm/km) | 78.5 |
| Capacitance Conductor to Conductor (pF/m) | 95 |
| Max. DC Resistance Conductor (Ohm/km) | 22.7 |
| Max. Operating Voltage (Vrms) | 300 |
| Max. Recommended Current at 25ºC (amps) | 5 |
| Nominal Inductance (μH/m) | 0.5 |
| DESIGN | |
| Insulation | Core1: Black Core2: Red Core3 : White Core4: Green Core5: Brown Core6: Blue Core7: Orange Core8: Yellow |
