Lift Travel Cables | 4F+4P Flat Cable
The Netcon flat ribbon cable is a streamlined, space-saving solution engineered for high-rise elevator systems, combining data and power transmission in one durable design to ensure reliable communication, efficient operation, and long-lasting performance between the elevator car and control room, even across demanding long cable runs in modern high-rise buildings.
| Name | Certificate |
|---|---|
| ROHS Certificate | View Certificate |
| IEC Certificate | View Certificate |
| CE Certificate | View Certificate |
| Test Report | View Certificate |
| ENVIRONMENT | |
|---|---|
| Water Blocking | Gel-filled or dry tube options available for moisture resistance |
| Jacket Material | PVC / LSZH |
| Temperature Range: | Operating: -40°C to +70°C Storage: -40°C to +85°C Installation: -20°C to +60°C |
| FIBER OPTIC COMPONENT | |
| Coating Diameter | 1310 nm and 1550 nm |
| Wavelengths Supported | ≤ 0.35 dB/km at 1310 nm |
| Attenuation | ≤ 0.22 dB/km at 1550 nm |
| Running Speed | ≤ 6 M/s |
| Minimum Bend Radius | 10x cable diameter during installation, 5x cable diameter post-installation |
| Max Suspension Length | 50-80 Meters |
| Data Transmission Distance & Speed | 1 Km @ 10 Gbps |
| Optical Characteristics | 9 μm (core) |
| Cladding Diameter | 250 μm |
| Cable Type | 4-core Single Mode (ITU-T G.657A1 or G.652D) |
| Core Diameter | 125 μm |
| Bandwidth | Typically >10 GHz·km at 1550 nm |
| Cable Cutoff Wavelength | ≤ 1260 nm, 9.2 μm ± 0.4 μm at 1310 nm |
| Travelig height | 250 Mtrs |
| POWER CABLE COMPONENT | |
| Voltage Rating | 300/500V (IEC 60227) 450/750V (IEC 60502-1) |
| Current Carrying Capacity | 5 -10 Amps - based On Application |
| Conductor Resistance | Per IEC 60228, approximately 12.1 /km at 20°C for 1.5 sqmm copper |
| Insulation Resistance | ≥ 20 MΩ·km at 20°C |
| Cable Type | 4 core 0.75 Sqmm , Multi Strand Copper |
| MECHANICAL CHARACTERISTICS | |
| Mx. Distance for Power Cable | 12V DC, 5A : 23Mtrs / 24V DC, 5A :46 Mtrs / 230V AC, 5A : 450 Mtrs |
| Sheath Material | PVC / LSZH, Grey |
| Insulation Material | PVC / XLPE |
| Bend Radius | 10x the cable thickness during installation, 5x the cable thickness in static conditions |
| Conductor Classifiaction | IEC 60228 Class 5 |
| Standard | EN50214 |

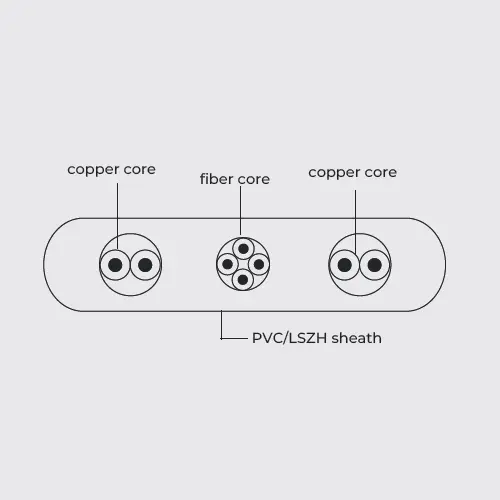

| Elements | 4C Single mode Fibre cable with 2P x 0.75mm Copper core |
