Server Cabinets

Server Cabinets

Server Cabinets | 42U/47U

  • Standard: DIN 41494 / EIA / ISO / EN / CEA
  • Mounting Depth: Adjustable

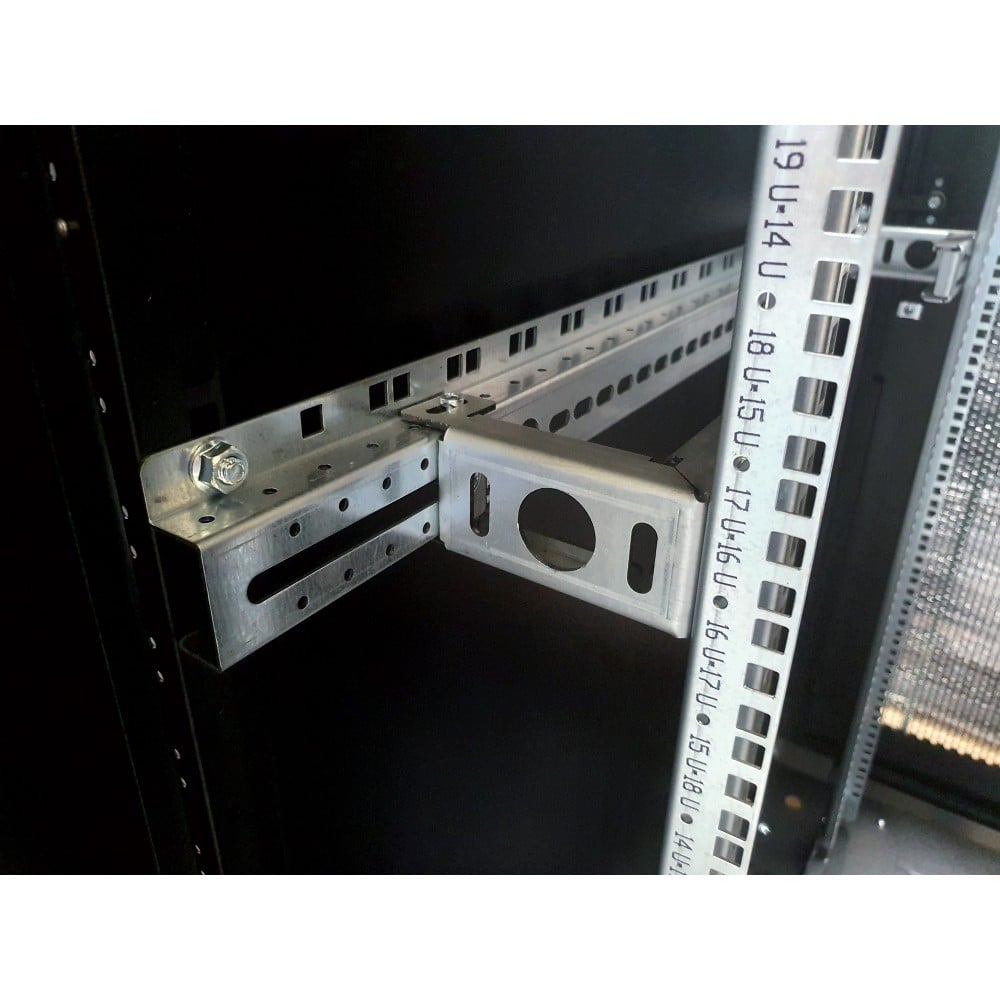

  • Verticals: 4 × 19" adjustable, 10 mm square & universal hole pattern
  • U Positions: Numbered
  • Manufacturing: High-quality, fast delivery
  • Compatibility: 100% with DIN 41494 equipment
  • Finish: Powder-coated, 7-tank ASTM process
  • Grounding/Bonding: Available
  • Fan Mount: Top cover provision
Applications: Servers, Networking, AV, Telecom & Lab applications.

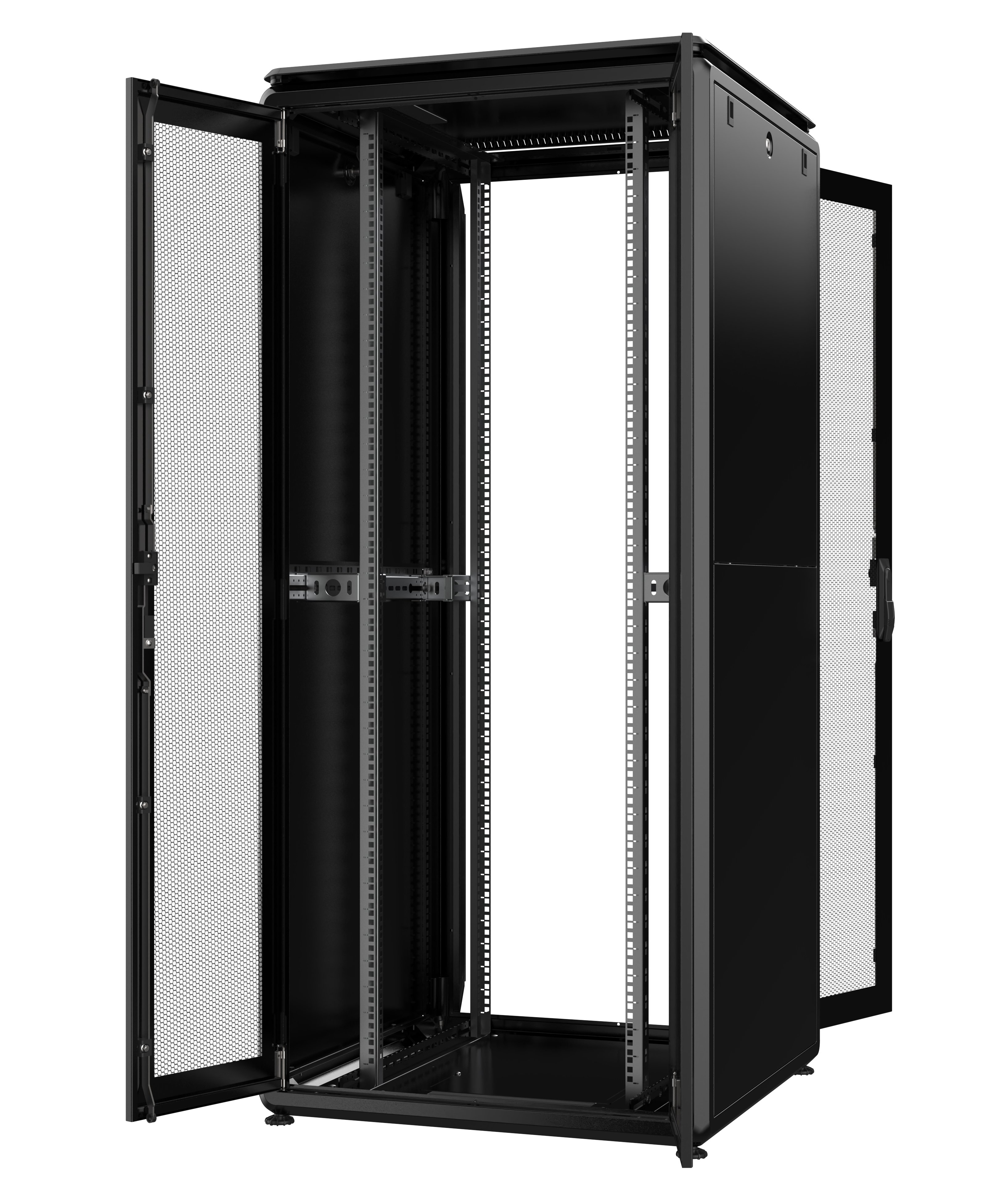

The NETCON service cabinet is a robust, DIN 41494-compliant rack designed for data centers and industrial applications, offering adjustable mounting depth and universal 19” verticals for maximum flexibility. It features a durable nine-fold steel frame with a powder-coated ASTM-standard finish, perforated doors, lockable side panels, and efficient thermal management with fans and ventilation. With a 1500 kg load capacity, integrated PDU, cable management, and heavy-duty casters, it ensures secure, organized, and reliable equipment housing.

Accessories : Cable Basket, Angle Pair, Ganging Kit, Fixed Shelf, Cantilever Shelf, Sliding Shelf, Key Board Shelf, Power Distribution Units, Cable Oragnisers,Fans and Fan Modules, Rack Ground Kit, Casters, Levellers, Rack Stabilizing Kit, Plinth

Name Certificate
IEC Certificate View Certificate
EU certificate View Certificate
CE certificate 1 View Certificate
CE certificate 2 View Certificate
TECHNICAL
Front Door Lockable toughened glass or perforated steel door
Rear Door Lockable steel door – plain / vented / perforated
19" Mounting Angle Formed steel
Std. Equipment Mounting DIN Std. 10mm Sq. Slots
Standard Finish Powder coated
Standard Colour Grey ,Off White, Black
Standard Mounting Caster wheels (2 with brake & 2 without brake)/ levelers/ plinth
Rack Standard DIN 41494 or equivalent standard
Basic Frame Steel folded
Construction Welded or CKD
Top & Bottom Cover Bolted to frame with cable entry/exit cut-outs
Loading capacity 1500 kg
