Battery Banks | 1 * ±10 Batteries
Battery Support: VRLA 7Ah/9Ah (12V)
Configuration: Flexible rack-mount design
Build: Compact, durable SPCC/DKP steel enclosure
Thermal Design: Longer battery life and energy efficiency
Strength: High mechanical capacity
Safety: Fire-resistant and insulated
Noise: Low noise level under 40 dB at 1 meter
Standards: Compliant with ISO 9001 and IEC safety regulations

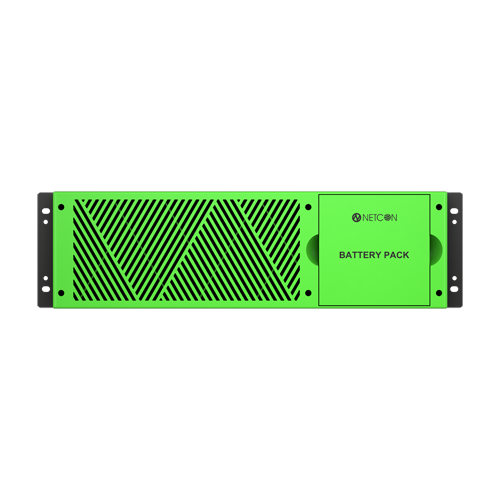

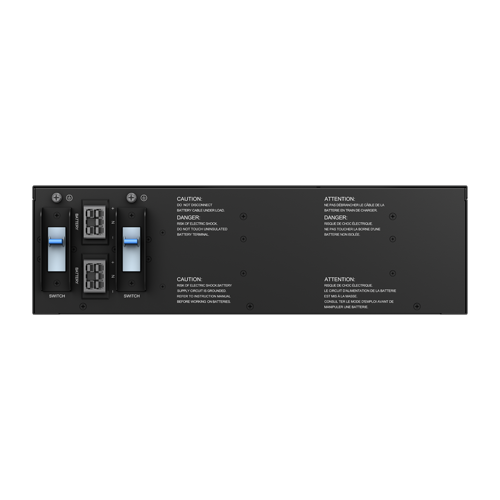

The Netcon Battery Bank is designed for VRLA maintenance-free batteries, available in multiple capacities from 1–10 kVA for UPS, telecom, and industrial applications. Built with a durable powder-coated steel enclosure, it features flexible battery configurations, high protection against wear and corrosion, and superior thermal design to extend battery life. With a compact rack-mount design, fire-resistant build, and easy installation, it ensures reliable backup power even in harsh environmental conditions.
| Name | Certificate |
|---|---|
| LVD report | View Certificate |
| LVD Certificate | View Certificate |
| EMC Certificate | View Certificate |
| EMC Test report | View Certificate |
| PHYSICAL | |
|---|---|
| Net weight (kg) | 58 / 63 |
| Dimension W x D x H (mm) | 440 x 680 x 131 (3U) |
| ENVIRONMENT | |
| Safety | CE |
| Operating environment | 0 ~ 4 degree Celsius |
| Relative humidity | 0~95% |
| Noise level | <40dB at 1 Meter |
| TECHNICAL | |
| Battery type | VRLA |
| Typical battery life | 3~5 years |
| Typical battery recharging time | 6~8 hours |
| System voltage | ±120 Vdc |
| Charging current (Max.) | 1.4A |
| Battery quantity | 1 * ±10 PCS |
| Capacity | 7Ah / 9Ah (12V) |
