Netcon Bypass PDU 1-3KVA

Netcon Bypass PDU 1-3KVA

Accessories | NTBP1-3KVA

  • Maintenance Bypass: Enables safe UPS servicing without load interruption.
  • Continuous Power: Keeps critical equipment powered during maintenance.
  • Overload Protection: Resettable breaker guards against over-currents.
  • Monitoring: Bypass/Normal LEDs and rotary switch for clear status and easy mode control.
Applications: Data centers, Server racks, Networking racks, Telecommunications closets, Office IT setups, Storage servers, Industrial control panels

External UPS Bypass (1–3 kVA)

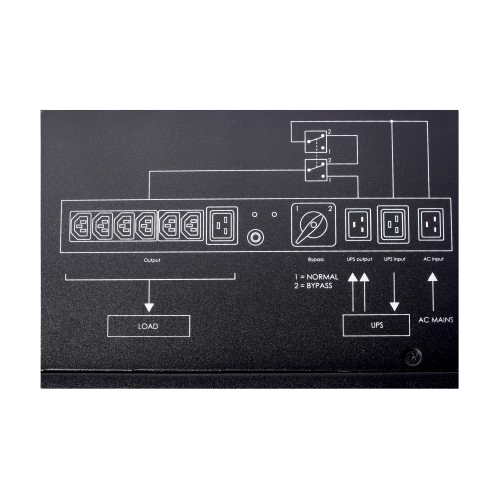

This external bypass is specially designed for UPS systems ranging from 1 to 3 kVA. In Normal Mode, the grid powers the UPS, which in turn supplies the connected load. In Bypass Mode, the load is powered directly by the grid, completely isolating the UPS. The UPS can be safely removed from the circuit for maintenance or replacement without interrupting power to the connected devices.

  • Connectivity:

    • 1× IEC-C20 (16A) input – connection to AC grid

    • 1× IEC-C19 (16A) output – connection to UPS input

    • 1× IEC-C20 (16A) input – connection to UPS output

    • 1× IEC-C19 (16A) output – connection to output load

    • 6× IEC-C13 (10A) outputs – connection to multiple loads

Parameter Specification
Voltage 220 / 230 / 240 VAC
Current 16 A Max
Input Connector 1× IEC C20 (16A) – connection to AC grid
Bypass Output 1× IEC C19 (16A) – connection to UPS input
Bypass Input 1× IEC C20 (16A) – connection to UPS output
Output Load 1× IEC C19 (16A) – primary load6× IEC C13 (10A) – additional loads
Dimensions 440 × 180 × 60 mm (1.4U)
Weight 2.15 kg
