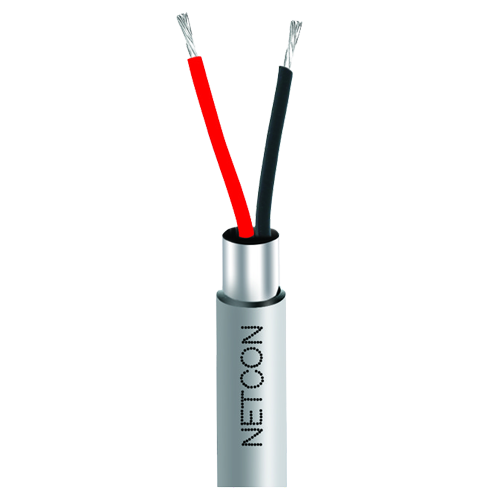

Shielded Cables | 4 Core

  • Type: Screened Multi-Conductor Cable
  • Length Availability: 305 meters and above (custom lengths available upon request)
  • Conductor: N x Bare Copper wire, 12 AWG flexible
  • Insulation - Polyolefin
  • Rip Cord : Nylon Yarn
  • Screen : Aluminum / Polyester Tape
  • Drained Wire : Tinned Copper wire
  • Sheath & Color: PVC / LSZH & Standard Grey
  • Insulation : PE (High Density Polyethylene)
  • Foil Coverage : 100%
  • Drain Wire : Tinned Copper
Applications: Audio systems,Control systems,Instrumentation, Building Management Systems (BMS), Security systems
Essential in environments with high levels of electrical noise or in situations requiring precise control and communication. Applications include industrial automation, audio and video systems, medical equipment, transportation systems, and renewable energy systems Applications Foil Shielded Control Cables - General-purpose signal and data transmission. Braid Shielded Control Cables - Industrial environments with high levels of electrical noise Combination Shielded Control Cables - Sensitive signal transmission in high-interference areas
Name Certificate
CE Certificate View Certificate
IEC Certificate View Certificate
ROHS Certificate View Certificate
Test Report View Certificate
PHYSICAL
Max. Recommended Pulling Tension (N) 845
Max. Bend Radius (Install) (mm) 75
No of cores 4
Nominal Cable weight (kg/km) 65
Drain Wire Size (AWG) 24 (7 x 32)
Nom. Diameter Conductor (mm) 1.8
Nom. Radial Thickness Sheath (mm) 0.8
Nom. Overall Diameter (mm) 7.5
Operating Temperature (ºC) 0 to +60
Min. screen Coverage 115
STANDARDS
STANDARDS (BS) EN 50290-2, IEC 60228,NFC 725.154 (A), ANSI / NFPA 262, RoHS dir ectives
ELECTRICAL
Max. Recommended Current at 25ºC (amps) 6.4
Max. Operating Voltage (Vrms) 300
Max. DC Resistance Conductor (Ohm/km) 9.36
No of cores 4
Max. DC Resistance Screen (Ohm/km) 78.5
Capacitance Conductor to other Conductors + Screen (pF/m) 385
Capacitance Conductor to Conductor (pF/m) 215
DESIGN
Screen Aluminium / Polyester Tape
Rip cord Nylon yarn
Sheath Material Flame- Retardant - LSZH / Polyvinyl Chloride (PVC) Standard Colour: Grey
Insulation PVC Core 1: Black Core 2: White Core 3: Red Core 4: Green Core 5: Brown Core 6: Blue Core 7: Orange Core 8: Yellow
Conductor Flexible Bare Copper wire
Drain Wire Tinned Copper wire
Standard Put Up Length 305 meters
