16 AWG SHIELDED

16 AWG SHIELDED

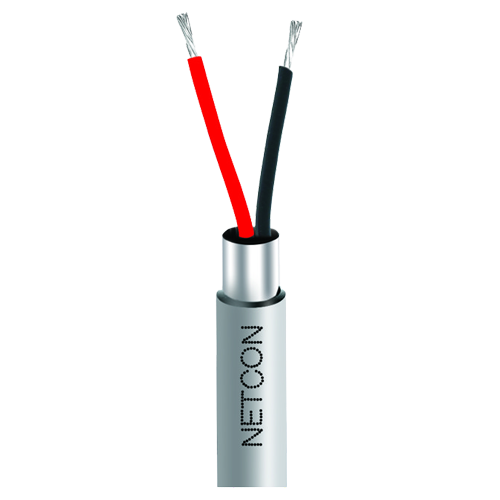

Shielded Cables | 8 Core

  • Type: Screened Multi-Conductor Cable
  • Length Availability: 305 meters and above (custom lengths available upon request)
  • Conductor: N x Bare Copper wire, 16 AWG flexible
  • Insulation - Polyolefin
  • Rip Cord : Nylon Yarn
  • Screen : Aluminum / Polyester Tape
  • Drained Wire : Tinned Copper wire
  • Sheath & Color: PVC / LSZH & Standard Grey
  • Insulation : PE (High Density Polyethylene)
  • Foil Coverage : 100%
  • Drain Wire : Tinned Copper
Applications: Audio systems,Control systems,Instrumentation, Building Management Systems (BMS), Security systems
Essential in environments with high levels of electrical noise or in situations requiring precise control and communication. Applications include industrial automation, audio and video systems, medical equipment, transportation systems, and renewable energy systems Applications Foil Shielded Control Cables - General-purpose signal and data transmission. Braid Shielded Control Cables - Industrial environments with high levels of electrical noise Combination Shielded Control Cables - Sensitive signal transmission in high-interference areas
Name Certificate
ROHS Certificate View Certificate
IEC Certificate View Certificate
Test Report View Certificate
CE Certificate View Certificate
PHYSICAL
No of cores 8
Nom. Radial Thickness Sheath (mm) 0.35
Max. Recommended Pulling Tension (N) 1040
Nominal Cable weight (kg/km) 120
Nom. Radial Thickness Insulation (mm) 0.2
Nom. Overall Diameter (mm) 7.6
Operating Temperature (ºC) - 25 / + 75
Min. screen Coverage 113 %
Drain Wire Size (AWG) 7/0.203mm, TC
Nom. Diameter Conductor (mm) 1.45
STANDARDS
STANDARDS Flammability: Comply to IEC 60332-1, VW-1 / IEC 60228 Comply to RoHS
ELECTRICAL
Max. DC Resistance Conductor (Ohm/km) 15.47
Max. Operating Voltage (Vrms) 300
Max. Recommended Current at 25ºC (amps) 4.35
Capacitance Conductor to other Conductors + Screen (pF/m) 160
Capacitance Conductor to Conductor (pF/m) 80
Max. DC Resistance Screen (Ohm/km) 78.5
Nominal Inductance (μH/m) 0.5
No of cores 8
DESIGN
Insulation Core1: Black Core2: Red Core3 : White Core4: Green Core5: Brown Core6: Blue Core7: Orange Core8: Yellow
